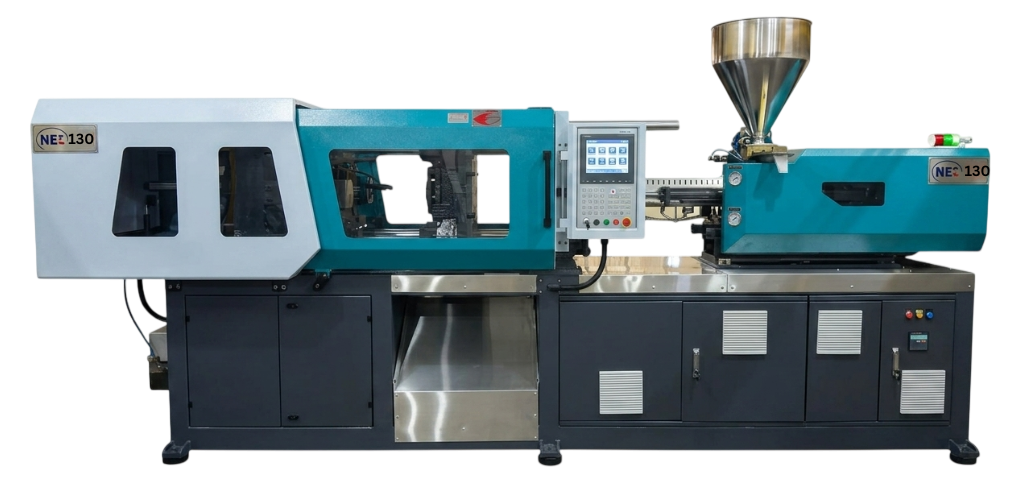

Injection Moulding Machine

At Naresh Engineering Corporation, we understand that every manufacturing requirement is unique. With decades of industry experience, we provide high-performance plastic injection moulding machines designed for precision, productivity, and long-term reliability. Our machines are engineered to deliver consistent output, energy efficiency, and superior product quality for diverse industrial applications.

INJECTION UNIT UNIT A B C
Screw Diameter mm 38 42 45
Length to diameter ratio L/D 23.9 22 19.9
Shot volume (Theoretical) CM³ 229 278 320
Injection Weight g 208 252 291
Injection Pressure Mpa 228 187 163
Screw Speed Rpm 185
CLAMPING UNIT UNIT VALUE
Clamping Force KN 1400
Toggle Stroke mm 380
Space Between Tie Bars (W*H) mm 420 X 420
Max. Mold Height mm 450
Min. Mold Height mm 160
Ejector Stroke mm 120
Ejector Force KN 50
Number of Ejector p 5
OTHERS UNIT VALUE
Max. Pump Pressure mpa 17.5
Pump Motor Power KW 18
Heater Power KW 9.3
Machine Dimension (L×W×H) mm 4.5 × 1.45 × 1.91
Tank Capacity L 250
Machine Weight T 5
Temperature Control Area Number p 3+1
Nozzle Radius mm SR10
